Cisco

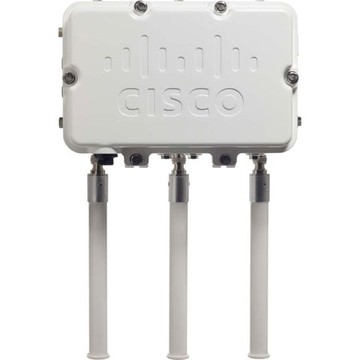

Points d'Accès Sans Fil Cisco AIR-CAP1552E-A-K9

UGS :

AIR-CAP1552E-A-K9

Cisco Aironet 1552E outdoor access point with dual-radio 2.4 GHz and 5 GHz 802.11a/b/g/n support, external antenna ports, Ethernet and SFP backhaul options, and PoE-out for connected devices.
Description
ico-plus ico-minus

The Cisco Aironet 1550 Series Outdoor Access Points are engineered for high-performance outdoor wireless networks, providing optimal connectivity in various demanding environments. Equipped with Cisco® CleanAir technology, these access points offer self-optimizing capabilities, mitigating wireless interference for reliable connectivity. Whether you need robust Wi-Fi for urban areas, campuses, or manufacturing sites, the Aironet 1550 series ensures seamless mobility for 3G and 4G data offloading, real-time video surveillance, and secure public access to Wi-Fi networks.


Key Features:

  • Cisco CleanAir technology for advanced interference detection and mitigation.
  • High 802.11n performance with MIMO technology and data rates of up to 300 Mbps.
  • Multiple uplink options including Gigabit Ethernet and Fiber SFP interfaces.
  • NEMA Type 4X certification ensures durability in extreme environments.
  • Internal battery backup for enhanced reliability.

Specifications:

  • Model Variants: Cisco Aironet 1552E, 1552C, 1552H, 15521
  • Deployment Options: Access or mesh network, Ethernet, fiber, wireless, cable backhaul
  • Operating Temperature: -40 to 55°C (-40 to 131°F)
  • Weight: 1552E - 17.3 lbs, 1552C - 14 lbs, 1552H - 17.6 lbs
  • Power Options: Power over Ethernet (PoE), Battery backup
  • Environmental Rating: IP67, withstands up to 100 mph winds
  • Data Rates Supported: Up to 300 Mbps
  • Radio Support: 802.11a/b/g/n
Technical Specifications
ico-plus ico-minus
Technical Information
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band Yes
ISM Minimum Frequency 2.40 GHz
ISM Maximum Frequency 2.48 GHz
UNII Minimum Frequency 5.73 GHz
UNII Maximum Frequency 5.85 GHz
Total Number of Antennas 3
Antenna Gain (Isotropic)
  • 4 dBi
  • 7 dBi
Antenna Type Omnidirectional Antenna
Wireless Transmission Speed 300 Mbit/s
Wireless Security
  • WPA
  • WPA2
  • MAC Address Filtering
  • AES
  • IEEE 802.1X
  • IEEE 802.11i
  • EAP
  • EAP-PEAP
  • EAP-TLS
  • EAP-TTLS
  • LEAP
  • TLIP
  • IPSec
  • L2TP
  • VPN pass-through
Features
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports 1
PoE (RJ-45) Port Yes
I/O Expansions
Total Number of Expansion Slots 1
Expansion Slot Type SFP (mini-GBIC)
Number of SFP mini-GBIC Slots 1
Power Description
Input Voltage 12 V DC
Physical Characteristics
Form Factor Pole-mountable
Height 6.4"
Width 12"
Depth 7.8"
Weight (Approximate) 17.30 lb
Miscellaneous
Certifications & Standards

IEEE Standards:

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11i
  • IEEE 802.1x

Safety:

  • UL 60950, 2nd Edition
  • CAN/CSA-C22.2 No. 60950, 2nd Edition
  • IEC 60950, 2nd Edition
  • EN 60950, 2nd Edition

Immunity:

  • <= 5 mJ for 6kV/3kA @ 8/20 ms waveform
  • ANSI/IEEE C62.41
  • EN61000-4-5 Level 4 AC Surge Immunity
  • EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
  • EN61000-4-3 Level 4 EMC Field Immunity
  • EN61000-4-2 Level 4 ESD Immunity
  • EN60950 Overvoltage Category IV

Radio approvals:

  • FCC Part 15.247, 15.407
  • FCC Bulletin OET-65C
  • RSS-210
  • RSS-102
  • AS/NZS 4268.2003
  • EN 300 328
  • EN 301 893

EMI and susceptibility:

  • FCC part 15.107, 15.109
  • ICES-003
  • EN 301 489-1, -17
Warranty
Limited Warranty 90 Day
Documents
ico-plus ico-minus
Document produit aironet-1550.pdf AIR-CAP1552E-A-K9
