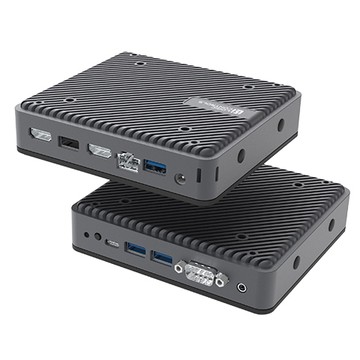

Ordinateurs Logic Controls ELITE-9550

The Logic Controls Elite 9550 System Controller combines sleek design with exceptional performance, making it an ideal choice for various commercial digital display applications. Powered by the robust Intel® Elkhart Lake J6412 processor, it supports multiple operating systems including Windows, Linux, Android, and ChromeOS. With the capability to connect up to three displays simultaneously and support for 4K video at 60fps, this compact controller excels even in high temperatures and humid environments. Easy mounting features enhance its versatility, making it a seamless addition to your display setup.
Key Features:

• Natively Supports: Windows, Linux, Android, ChromeOS
• Processor: Powerful Intel® Elkhart Lake J6412
• Multi-Display Support: Connect up to 3 displays
• 4K Video: 60fps support (single screen)
• Connectivity: Optional Bluetooth & Wi-Fi
• Heat Resistance: Up to 170°F (76°C)

Specifications:

• Motherboard: F38
• Memory: 8GB DDR4
• Storage: 128GB eMMC
• Expansion: 1 microSD Card Slot
• I/O Ports:
  • USB-Type A: 1 x USB2.0; 3 x USB3.0
  • USB-Type C: 1 x USB3.0 (Display Port Capable)
  • Serial Port: 1 x DB9 (Powered RS232)
  • LAN: 1 x RJ45
  • HDMI: 2 (HDMI 2.0, 4K @ 60Hz)
  • Display Port: 1 (DP1.4, 8K @ 30Hz)
  • Audio: 1 Mic-in/Line-Out
• Power Adapter: 36W / 12V
• WLAN + BT: Wi-Fi 6, BT5.2 (Option)
• Certification: FCC Class A, CE Mark, LVD
• Operating Temperature: 0°C to 76°C (32°F to 170°F)
• Relative Humidity: 85% max, non-condensing
• Dimensions: W x H x D: 131 x 117.4 x 32mm (5.11 x 4.62 x 1.26 in.)
• VESA Mount: 75 x 75, 100 x 100
• OS Supported: Windows 10/11, Linux, Android 13, ChromeOS
