Wasp

Lecteurs Portables Wasp 633809004018

UGS :

633809004018

Ring Barcode Scanners, Wasp WRS100SBR, 33 ft./ 10 m (line of sight), Cordless, Decodes 1D/Linear Codes, Built-in Bluetooth, Black, Send data to the host up to 10 meters away, 2MB Memory, Linear image sensor, 1.5M Micro(M) to USB A(M) Cable, Velcro Strap, Features SBR (Screen Barcode Readable) laser based technology, Easily integrate with Android and iOS devices
Description
ico-plus ico-minus

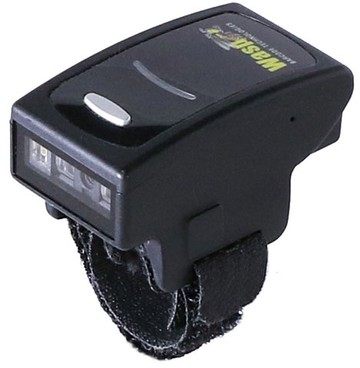

The Wasp WRS100SBR 1D Ring Barcode Scanner combines advanced technology with a lightweight, wearable design that is perfect for hands-free scanning. This innovative scanner effortlessly captures both printed and on-screen barcodes, making it ideal for various environments. Equipped with Bluetooth connectivity, it pairs seamlessly with iOS, Android, and Windows mobile devices, allowing you to transmit data efficiently from up to 10 meters away. With laser aim assistance for quick data capture, this scanner enhances productivity while ensuring ease of use.


Key Features

  • Scans popular 1D barcodes in printed or on-screen formats
  • Bluetooth enabled for wireless connectivity
  • Hands-free design for improved efficiency
  • Effective range of up to 10 meters
  • Laser aim assist for swift scanning

Specifications

  • Optic & Performance
    • Light Source: 650nm visible red laser
    • Scan Rate: 400 scans/sec
    • Resolution: 4mil/0.1mm
    • Scan Angle: 41°
  • Physical Characteristics
    • Dimensions: W1.09 x L1.82 x H1.06 in (W27.6 x L46.2 x H26.8 mm)
    • Weight: 72 oz. (20.5g)
    • Material: PC+ABS
  • Electrical Connectivity
    • Battery: 3.7V, 200mAh, Li-Polymer
    • Bluetooth 4.1 (Class 2)
    • Number of Scans (full charge): 6000 scans
  • User Environment
    • Operating Temperature: 14 ~ 122 °F (-10 ~ 50 °C)
    • Drop Durability: 5 ft. (1.5 m)

Caractéristiques principales

  • Connexion: Bluetooth

  • Capacité de numérisation: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable/Wireless
Scanning Capability 1D
Barcode Symbology Supported
  • UPC-A/UPC-E
  • EAN-8/EAN-13
  • Industrial 2 of 5
  • Codabar
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 32
  • Code 128
  • Standard Code 39
  • Full ASCII Code 39
  • Interleaved 2 of 5
  • China Postal Code
  • MSI Plessy Code
  • UK Plessy Code
  • EAN/UCC 128
  • Telepen Code
  • IATA Code
  • GS1 Databar
Light Source Laser
Image Sensor Type Imager
Scan Rate 400 scan/s
Scan Mode Trigger
Scan Pattern Linear
Scanning Distance 10.04"
Features
  • Scan Button
  • Notification LED
  • Vibration
Cable Type Included USB
Reading Angle (Skew) 40°
Reading Angle (Pitch) 30°
Reading Angle (Roll) 20°
Maximum Ambient Light 70000 lux
Drop Specification

5 ft. (1.5 m)
Minimum Print Contrast 30%
Minimum Element Resolution (Code 39) 4 mil
Maximum Element Resolution (Code 39) 15 mil
Air Electrostatic Discharge (+/-) 8kV
Contact Electrostatic Discharge (+/-) 4kV
Memory
Standard Memory 2 MB
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Chemistry Lithium Polymer (Li-Polymer)
Battery Capacity 200 mAh
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Wearable
Color Family Dual Color
Product Color
  • Yellow
  • Black
Product Material ABS/PC
Durability Drop Resistant
Height 1.1"
Width 1.1"
Length 1.8"
Weight (Approximate) 0.72 oz
Miscellaneous
Package Contents
  • WRS100SBR Ring Barcode Scanner
  • USB charging cable
  • Velco strap
Ingress Protection (IP) Rating IP42
Platform Supported
  • iOS
  • Android
  • Windows
  • Smartphone
Country of Origin Taiwan
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS) 2
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Documents
ico-plus ico-minus
Document produit wrs100.pdf 633809004018 Document produit wrs100.pdf MOD-WASP-WRS100SBR
