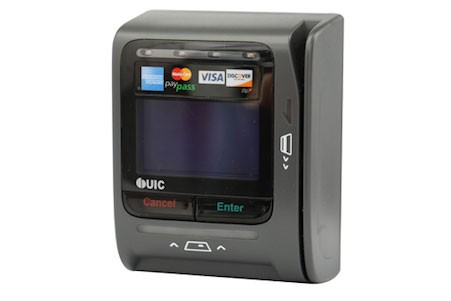

Lecteurs de Cartes UIC BEZEL8-AA32YGUCARUS1

The UIC BEZEL 8 Credit Card Reader is a cutting-edge 3-in-1 device designed for seamless integration into unattended applications like vending machines, parking lots, and transportation systems. With support for Magnetic Stripe, Smart Card, and Near Field Communication (NFC) functionalities, this robust reader is built to withstand outdoor environments while ensuring secure transactions. Powered by a high-performance 32-bit processor, it handles advanced contactless EMV applications with ease, making it an optimal choice for modern payment processing solutions.

• 3-in-1 functionality for Magnetic Stripe, Smart Card, and NFC transactions.
• Remote firmware download and management through Linux OS.
• High security with encryption for safe payment environments.
• Compact design ideal for vending and unattended operations.
• Compliant with European Vending Association (EVA) requirements.
• Multi-color LED and LCD display for user interactions.
• Wide connectivity options including USB, RS232, and Ethernet.

• Electrical:
  • Processor: 32-bit
  • Input Voltage: USB or 5V/1A from RS232
  • Battery RTC Life: 5 years
• Mechanical:
  • Weight: < 350g
  • Dimensions: L:105 mm x W:84 mm x D:48 mm
  • Material: PC+ABS, 94V-0
• Environmental:
  • Operating Temperature: -20 °C to 70 °C
  • Storage Temperature: -30 °C to 80 °C
  • Humidity: 5% to 95% (Non-condensing)
  • IP Rating: 54
  • IK Rating: 06
• Security Requirement:
  • Encryption: DES, 3DES, SHA, MAC, AES, RSA
• Certification Requirement:
  • EMV Level: Contact L1 & L2
  • Payment Card Support: Visa payWave, MasterCard PayPass, American Express, Discover D-PAS
  • Compliance: FCC Class B, CE Class B, RoHS
