Bixolon

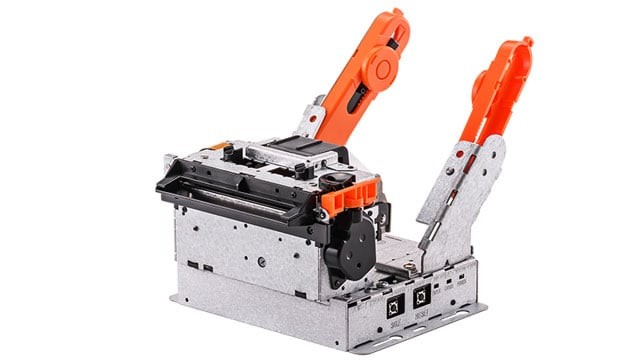

Imprimantes Kiosk Bixolon BK5-31AA

UGS :

BK5-31AA

Receipt Printer, Bixolon BK5-31, Bixolon, 3 Inch,Thermal Kiosk Printer, Tickets, Labels And Wristbands, 203 Dpi, Serial Dsub 9P, USB B, Dc Jack Power, Package Incl. Dc Jack Power Supply (K404-00062A) Us Power Cord (Je39-00058B USB Cable)
Description
ico-plus ico-minus
The Bixolon BK5-31 Receipt Printer is the perfect solution for businesses in gaming, healthcare, and various service industries. Featuring remarkable print speeds of up to 150 mm/sec at a resolution of 203 dpi, this 3-inch kiosk label printer excels in printing tickets, labels, and wristbands. Its user-friendly design and side open-frame make media loading a breeze, while adjustable media widths ensure compatibility with various printing needs. Built for reliability, the BK5-31 operates smoothly in a wide temperature range, making it a versatile choice for any environment.
Key features:
  • Fast Printing: Up to 150 mm/sec at 203 dpi
  • Versatile Compatibility: Supports tickets, labels, and wristbands
  • Easy Media Loading: Side open-frame design
  • Compact Design: Ideal for constricted spaces
  • Multiple Interfaces: USB + Serial connectivity options

Specifications:
  • Print Method: Direct Thermal
  • Dimensions: 130 x 181 x 123 mm (130 mm roll)
  • Weight: 780 g
  • Operating Temperature: -20~60 °C (-4 ~ 140 °F)
  • Media Types: Ticket, Label (Gap, Black Mark)
  • Media Widths: 20/58/60/80/83 mm
  • Print Widths: 12/48/54/72/80 mm
  • Sensor: Paper End, Cover Open, Near End
  • Power Supply: 100-240 V AC, 50/60 Hz
  • Barcode Symbologies: Supports various 1D and 2D formats

Caractéristiques principales

  • Connexion: Serial, USB, Ethernet

  • Technologie d'impression: Direct Thermal

Spécifications techniques
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5.91 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 3.15"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • UPC-A
  • UPC-E
  • QR Code
  • PDF417
  • Data Matrix
  • EAN-8
  • EAN-13
  • GS1 DataBar Limited
  • GS1 DataBar Stacked
  • GS1 DataBar Truncated
  • GS1 DataBar Expanded
  • GS1 DataBar Omnidirectional
  • GS1-128
  • 1D
  • 2D
Application/Usage
  • Healthcare
  • Casino
  • Lottery
  • Transportation & Logistic
  • Kiosk
Features
  • Compact
  • Lightweight
Character Sets
  • 95 Alphanumeric
  • 32 International
  • 128 x 35 Graphic
Fonts Included
  • Font A: 12 x 24
  • Font B: 9 x 17
  • Font C: 9 x 24
  • JPN: 24 x 24
  • KOR
  • CHN
Print Technology Direct Thermal
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
USB Standard USB 2.0
Network & Communication
Ethernet Yes
Display & Graphics
Display Screen Yes
Screen Size 3"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Receipt
  • Ticket
  • Gap
  • Black Bar
  • Wristband
Media Sensor
  • Paper End Sensor
  • Black Mark Sensor
  • Cover Open Sensor
  • Paper Near End Sensor
  • Gap Sensor
Media Thickness 7.87 mil
Maximum Roll Diameter 5.91"
Maximum Label Width 3.27"
Fonts & Emulation
Language Emulation BXL/POS
Power Description
Power Source AC Supply
Frequency
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature -4°F (-20°C) - 140°F (60°C)
Operating Relative Humidity 10% - 95%
Storage Temperature 32°F (0°C) - 104°F (40°C)
Storage Relative Humidity 10% - 95%
Physical Characteristics
Weight (Approximate) 1.72 lb
Miscellaneous
Power Cable Localization US
Documents
ico-plus ico-minus
Document produit BK5-31.pdf BK5-31AA Document produit BK5-31.pdf MOD-BK5-31
