Wasp

Imprimantes d'étiquettes Wasp 633809003219

UGS :

633809003219

Barcode Label Printers, Wasp WPL618, Thermal Transfer, RS-232/USB/Ethernet/USB Host (Front Side)/Slot-in Wi-Fi, 203 dpi, 18 ips, 4.09" Max Print Width, Industrial, 512 MB Flash/512 MB SDRAM memory, "Thermal Smart Control" print technology, WPL, ZPL, and EPL emulation
Description
ico-plus ico-minus

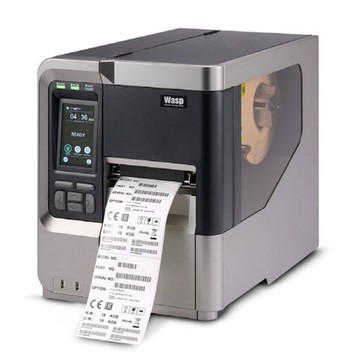

The Wasp WPL618 Barcode Label Printer is engineered for high-volume industrial use, combining an ultra-rugged design with high-speed performance. Its heavy-duty die-cast aluminum construction and large media view window make it perfect for demanding environments. Equipped with a powerful 536 MHz processor and capable of printing at a rapid speed of 18 inches per second, this printer ensures high-quality barcodes with precision. With multiple resolution options and an intuitive 4.3-inch color LCD touchscreen, the WPL618 redefines efficiency in barcode printing.


Key Features
  • Rugged design: Heavy-duty die-cast aluminum cover
  • Fast performance: 18 IPS print speed
  • Advanced technology: Thermal Smart Control™ for high-quality barcodes
  • User-friendly: 4.3-inch color LCD with touch-panel operation
  • Flexible resolutions: Available in 203, 300, and 600 dpi
  • High memory: 512 MB Flash and 512 MB SDRAM

Specifications
  • Print Method: Thermal Transfer & Direct Thermal
  • Max Print Speed: 18 IPS (457 mm/s)
  • Max Print Width: 4.09 in (104 mm)
  • Max Print Length: 1,000 in (25,400 mm)
  • Processor: 32-bit RISC CPU
  • Weight: 39.68 lbs (18 kg)
  • Dimensions: 11.81 in (W) x 15.47 in (H) x 20.08 in (D)
  • Power Supply: AC 100-240V, 4-2A, 50-60Hz
  • Barcode Support: 1D and 2D barcodes including QR code, PDF-417, Code 39, and more
  • Environmental Compliance: Complies with RoHS and ENERGY STAR® standards

Caractéristiques principales

  • Robuste: Industrial

  • Connexion: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 18 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 83.33 ft
Maximum Print Width 4.09"
Application/Usage Industrial
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Wireless LAN Yes
Media Types & Handling
Media Type
  • Continuous Paper
  • Die-cut Label
  • Black Mark
  • Fanfold
  • Notch
  • Label
Maximum Roll Diameter 3"
Maximum Label Width 4.49"
Maximum Label Length 83.33 ft
Power Description
Power Source AC Supply
Physical Characteristics
Height 15.5"
Width 11.8"
Depth 20.1"
Weight (Approximate) 39.68 lb
Miscellaneous
Package Contents
  • WPL618 Industrial Barcode Printer
  • USB Cable
  • Power Cord
  • 2-Year Warranty
Cables Included
  • USB
  • AC
Platform Supported PC
Energy Star Yes
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Document produit wpl618.pdf 633809003219 Document produit wpl618.pdf MOD-WASP-WPL618
