Wasp

Imprimantes d'étiquettes Wasp 633809009341

UGS :

633809009341

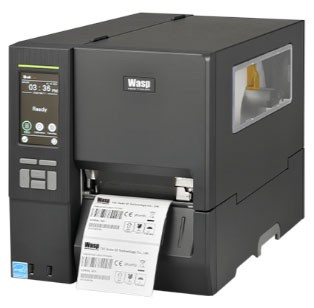

Barcode Label Printers, Wasp WPL614Plus, USB 2.0/RS-232 Serial/Internal Ethernet (10/100 Mbps)/USB Host, 256 MB SDRAM/512 MB Flash, 14 ips Max Print Speed, 4.09" Max Print Width, 1" Core, 203 dpi
Description
ico-plus ico-minus

The Wasp WPL614Plus Barcode Label Printer is designed for industrial use, delivering exceptional durability and reliability for high-volume print applications. This printer excels in providing near real-time information and updates, ensuring smooth operations and efficient labeling for various needs. With versatile connectivity options such as Wi-Fi and Bluetooth, you can easily integrate it into your workspace. The user-friendly design facilitates quick maintenance, making it an ideal choice for businesses that demand speed and efficiency in their labeling processes.


Key Features
  • Dynamic remote printer management for enhanced control
  • Selectable media sensor settings to accommodate various label types
  • GPIO support for common applicators and emulations
  • Wi-Fi compatibility with 802.11 a/b/g/n/ac and Bluetooth 4.2
  • Easy printhead and platen roller replacement for low downtime

Specifications
  • Print Resolution: 203 DPI (upgradeable to 300 and 600 DPI)
  • Printing Method: Thermal Transfer & Direct Thermal
  • Max Print Speed: 14 IPS (356 mm/sec)
  • Max Print Width: 4.09 in (104 mm)
  • Dimensions: 10.87 in (W) x 12.83 in (H) x 19.76 in (D)
  • Weight: 34.61 lbs (15.70 kg)
  • Processor: 32-bit RISC CPU with 512 MB Flash memory
  • Connectivity: USB 2.0, RS-232, Internal Ethernet
  • Power Supply: AC 100-240V, 4-2A
  • Operating Temperature: 32-104°F (0-40°C)
  • Warranty: 2-Year Limited

Caractéristiques principales

  • Robuste: Industrial

  • Connexion: USB, Ethernet, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 14 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 83.33 ft
Maximum Print Width 4.09"
Barcode Symbology Supported
  • 1D
  • Code 39
  • Code 93
  • Code 128 UCC
  • Codabar
  • Interleaved 2 of 5
  • EAN 128
  • UPC-A
  • UPC-E
  • EAN and UPC 2(5) Digits Add-On
  • MSI
  • Plessey
  • POSTNET
  • RSS Stacked
  • GS1 DataBar
  • Code 11
  • China Post
  • 2D
  • PDF-417
  • Maxi Code
  • Data Matrix
  • QR Code
  • AZTEC
Application/Usage
  • Industrial
  • Manufacturing
  • Transportation & Logistic
  • Warehouse
  • Retail
Features
  • Rugged
  • Durable
  • Easy to Use
Mobile Device Printing Yes
Wireless Print Technology Apple MFi Certified
Number of Users 5
Connectivity Technology Wired & Wireless
Fonts Included
  • 8 alpha-numeric bitmap fonts
  • Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
Duplex Printing Yes
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 256 MB
Flash Memory 512 MB
Interfaces/Ports
USB Yes
USB Standard USB 2.0
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Bluetooth Version
  • 4.2
  • 5.0
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Display & Graphics
Display Screen Yes
Screen Size 4.3"
Display Screen Type LCD
Touchscreen Yes
Media Types & Handling
Media Type
  • Die-cut Label
  • Black Mark
  • Fanfold
  • Notch
  • Tag
  • Perforated Paper
Media Sensor
  • Multi-position Transmissive/Gap Sensor
  • Moveable Reflective/Black Mark Sensor
  • Head Open Sensor
  • Ribbon Encode Sensor
Fonts & Emulation
Language Emulation
  • WPL
  • EPL
  • ZPL
  • ZPL II
  • DPL
Power Description
Power Source AC
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 32°F (0°C) - 104°F (40°C)
Storage Temperature -40°F (-40°C) - 140°F (60°C)
Physical Characteristics
Form Factor Desktop
Height 12.8"
Width 10.9"
Depth 19.8"
Weight (Approximate) 34.61 lb
Miscellaneous
Package Contents
  • WPL614Plus Industrial Barcode Printer
  • Quick Start guide
  • USB Cable
  • Power Cord
Cables Included
  • RS-232
  • USB
  • AC
Energy Star Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Document produit wpl614plus.pdf 633809009341 Document produit wpl614plus.pdf MOD-WASP-WPL614PLUS
