Honeywell

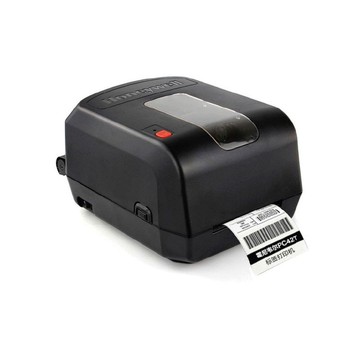

Imprimantes d'étiquettes Honeywell PC42TPE01062

UGS :

PC42TPE01062

Paired with a USB interface, a ribbon sample, and a US power cord, the Honeywell PC42TPE01062 is a thermal transfer desktop printer that prints monochrome labels at 203 dpi and up to 5 in/s across a 4.10-inch print width. It accepts media up to 4.30 inches wide and up to 39 inches long on rolls to 5 inches in diameter, with 64 MB of standard memory and 64 MB of flash memory on board. Connectivity covers USB device, USB host, serial, and Ethernet, while the 4-inch LED display aids operation. Language emulation spans ZPL II, EPL, DPL, and Direct Protocol, with auto-sensing across all four for compatibility with a broad range of existing environments. The 5.51 lb chassis measures 8.9 inches wide by 11.7 inches deep by 6.9 inches tall and operates from 50 Hz or 60 Hz AC supply between 41°F (5°C) and 104°F (40°C). CE, KC, RM, D Mark, EN 60950-1, IEC 60950-1, and EMC Directive (EN55032 Class A + EN55024) certifications are included, backed by a one-year limited warranty.
Les prix n’ont pas pu être mis à jour.
Description
ico-plus ico-minus

The Honeywell PC42t Barcode Label Printer brings over 40 years of innovation to your labeling needs. This compact and user-friendly desktop printer is ideal for light-duty applications across various industries. With support for media widths up to 110 mm (4.3 in) and the ability to utilize longer ribbons for increased productivity, the PC42t offers a seamless integration into any workspace. Featuring robust connectivity options and a straightforward installation process, it is the perfect choice for businesses transitioning to thermal printing. Affordable and efficient, the PC42t enhances your label-making operations without breaking the bank.


Key Features
  • Compact design for easy placement in any environment
  • Supports various media and ribbon configurations
  • Industry-standard connectivity with USB, Ethernet, and serial options
  • Easy operation with quick media replenishment
  • Supports multiple print languages including EPL, ZPL-II, and Direct Protocol

Specifications
  • Dimensions: 297 mm x 226 mm x 177 mm (11.7 in x 8.9 in x 7.0 in)
  • Weight: 2.5 kg (5.5 lbs)
  • Max. Media Diameter: 127.0 mm (5.0 in)
  • Media Width: 25.4 mm (1.0 in) to 110 mm (4.3 in)
  • Max. Print Speed: 101.6 mm/s (4.0 ips)
  • Print Resolution: 8.0 dpmm (203 dpi)
  • Operating Temperature: +5°C to +40°C (+41°F to +104°F)
  • Input Voltage: 100-240V AC @ 50-60 Hz, 1.5 A
  • Memory: 64 MB Flash, 64 MB SDRAM

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB, Ethernet

  • Technologie d'impression: Thermal Transfer

Spécifications techniques
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.10"
Barcode Symbology Supported
  • 1D
  • 2D
  • EAN-8
  • MSI
  • EAN-13
  • POSTNET
  • RSS-14
  • PLANET
  • UCC 128
  • HIBC Code 128
  • HIBC Code 39
  • EAN
  • Plessey
  • Grid Matrix
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • AZTEC
  • Code 49
  • Data Matrix
  • Code 16K
  • Dot Code
  • QR Code
Application/Usage
  • Desktop
  • Business
Memory
Standard Memory 64 MB
Flash Memory 64 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Network Ready Yes
Ethernet Yes
Ethernet Technology Ethernet
Display & Graphics
Display Screen Yes
Screen Size 4"
Display Screen Type LED
Media Types & Handling
Media Type Label
Maximum Roll Diameter 5"
Maximum Label Width 4.30"
Maximum Label Length 39"
Fonts & Emulation
Language Emulation
  • EPL
  • DPL
  • ZPL II
Power Description
Power Source AC Supply
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Form Factor Desktop
Height 6.9"
Width 8.9"
Depth 11.7"
Weight (Approximate) 5.51 lb
Miscellaneous
Certifications & Standards
  • CE
  • KC
  • RM
  • D Mark
  • EN 60950-1
  • IEC 60950-1
  • EMC Directive (EN55032 Class A + EN55024)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit mod-honeywell-pc42t-series-printers-honeywell-label-printer-datasheet.pdf PC42TPE01062 Document produit mod-honeywell-pc42t-series-printers-honeywell-label-printer-user-manual.pdf PC42TPE01062 Document produit pc42t.pdf MOD-HONEYWELL-PC42T-SERIES-PRINTERS
