Datamax

Imprimantes d'étiquettes Datamax I12-00-03400007

UGS :

I12-00-03400007

Barcode Label Printers, Honeywell, I-4212E-4, Direct Transfer, 203 dpi, Serial, Parallel, USB
Description
ico-plus ico-minus

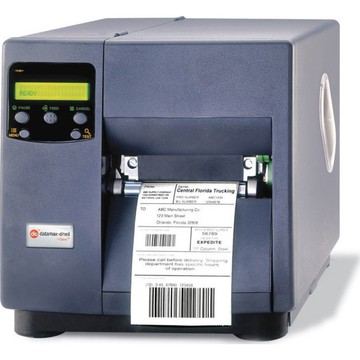

The Honeywell I-4212e Barcode Label Printer delivers exceptional performance and reliability for various industrial applications, including shipping and receiving, product identification, and asset tracking. This mid-range printer boasts a rugged construction, fast processing capabilities, and advanced thermal printing technology. With its modular design, users can easily upgrade features, ensuring it adapts to evolving business needs. Known for its easy integration with existing systems, including Zebra ZPL II compatibility, the I-4212e printer is an excellent alternative in the industrial barcode printing arena.

Key Features:
  • Modular design for user field-upgradable options like thermal transfer and internal rewinder.
  • Multiple communication ports including serial, USB, and LAN for versatile connectivity.
  • User-friendly operation with 7-button 128 x 64 LCD display for easy label configuration.
  • Rugged construction with durable die-cast aluminum frame for enhanced reliability.
  • Wide printhead access for quick maintenance and reduced downtime.


Specifications:
  • Dimensions: 322.6 mm x 320.5 mm x 472.4 mm (H x W x D)
  • Weight: 20.5 kg (45 lbs)
  • Printer Type: Direct thermal, optional thermal transfer
  • Print Speed/Resolution:
    • I-4212e: 304 mm/s (12 ips), 203 dpi
    • I-4310: 254 mm/s (10 ips), 300 dpi
    • I-4606: 152 mm/s (6 ips), 600 dpi
  • Communication Ports:
    • Standard: Serial RS-232, USB 2.0, parallel bi-directional
    • Optional: 10/100 Base-T Ethernet, two USB host, WLAN
  • Temperature: Operating range from 0°C to 40°C (32°F to 104°F)
  • Media Width Range: 25.4 mm to 118.1 mm (1.0 in to 4.7 in)
  • Warranty: Printer - 1 year, Printhead - 1 year or 25,400,000 mm

Caractéristiques principales

  • Robuste: Industrial

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 12 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.10"
Barcode Symbology Supported
  • Code 3 of 5
  • UPC-A
  • UPC-E
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC 128
  • EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Rewinder Yes
Application/Usage Desktop
Features
  • Mirror Printing
  • Vertical Printing
  • Horizontal Printing
  • Media Supply Hub
Print Technology Direct Thermal
Memory
Standard Memory 32 MB
Memory Technology SDRAM
Flash Memory 64 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Black Mark
  • Ticket Stock
  • Label
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 10 mil
Maximum Roll Diameter 8"
Maximum Label Width 4.65"
Label Core Size 3"
Fonts & Emulation
Language Emulation
  • DPL
  • PLI
  • PLZ
Power Description
Power Source AC Supply
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 12.7"
Width 12.6"
Depth 18.6"
Weight (Approximate) 45 lb
Miscellaneous
Package Contents
  • I-Class Mark II I-4212E Label Printer
  • Software CD
Platform Supported PC
Certifications & Standards
  • Unicode
  • UTF8
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit mod-i-4212-datamax-label-printer-datasheet.pdf I12-00-03400007 Document produit datamax-i-4212.pdf I12-00-03400007 Document produit mod-i-4212-datamax-label-printer-datasheet.pdf MOD-I-4212
