Bixolon

Imprimantes d'étiquettes Bixolon BK3-31AA

UGS :

BK3-31AA

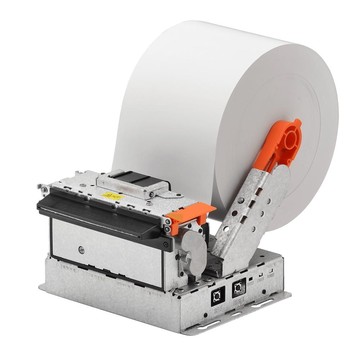

Receipt Printers, Bixolon BK3-31AA, 3" Thermal Kiosk Printer, 250mm/Sec, 203 dpi, 80mm Diameter, USB, Serial Interface Connector (Male), Power Connector (DC Jack), Right Lever
Description
ico-plus ico-minus

The Bixolon BK3-31 Receipt Printer is designed for efficiency and flexibility in high-demand settings like healthcare, retail, and hospitality. With a lightning-fast print speed of up to 250 mm/sec at 203 dpi and a compact design, it easily fits into constrained spaces while delivering powerful performance. Adaptive to various media widths and thicknesses, the BK3-31 significantly reduces paper waste, making it an eco-friendly choice. Equipped with intuitive features such as a multi-position near-end sensor and optional presenter to prevent paper jams, it stands out as a reliable solution for any business looking to enhance their ticketing and receipt printing operations.


Key features:
  • Fast Printing Speed: Up to 250 mm/sec at 203 dpi.
  • Wide Media Compatibility: Supports selectable widths of 20/58/60/80/83 mm.
  • Compact Design: Fits into tight spaces; lightweight and easy to deploy.
  • Multiple Interfaces: Standard USB and Serial, with optional Ethernet.
  • Eco-Friendly: Reduces paper usage by up to 25%, lowering CO2 emissions.

Specifications:
  • Print Characteristics:
    • Print Method: Direct Thermal
    • Print Speed: Up to 250 mm/s
    • Print Resolution: 203 dpi
    • Print Width: 12/48/54/72 mm
  • Media Characteristics:
    • Media Type: Receipt, Ticket
    • Media Roll Diameter: BK3-31: 80/102/120/150 mm
    • Media Thickness: 0.05 - 0.15 mm
  • Physical Characteristics:
    • Dimensions: Multiple sizes depending on roll diameter
    • Weight: BK3-31: 700 g
  • Environmental:
    • Operating Temperature: -20~60 °C
    • Humidity: 10~95% (non-condensing)

Caractéristiques principales

  • Connexion: Serial, USB

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 9.84 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.83"
Barcode Symbology Supported
  • QR Code
  • PDF417
  • GS1 DataBar
  • Data Matrix
  • Aztec Code
  • EAN-8
  • EAN-13
  • ITF
  • UPC-A
  • UPC-E
  • Code 128
  • Code 39
  • Code 93
  • Codabar
  • GS1 DataBar Stacked
  • GS1 DataBar Expanded
  • GS1 DataBar Limited
  • GS1 DataBar Truncated
  • GS1-128
  • 1D
  • 2D
Application/Usage
  • Retail
  • Healthcare
  • Hospitality
  • Ticketing
  • Kiosk
Features
  • Compact
  • Lightweight
Character Sets
  • 95 Alphanumeric
  • 32 International
  • 128 x 35 Graphic
Installation Horizontal/Vertical
Fonts Included
  • Font A: 12 x 24
  • Font B: 9 x 17
  • Font C: 9 x 24
  • JPN: 24 x 24
  • CHN
Print Technology Direct Thermal
Interfaces/Ports
Serial Port Yes
USB Yes
USB Standard USB 2.0
Display & Graphics
Display Screen Yes
Screen Size 3"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Receipt
  • Ticket
Media Sensor
  • Paper End Sensor
  • Cover Open Sensor
  • Paper Near End Sensor
  • Black Mark Sensor
Media Thickness 4.72 mil
Maximum Roll Diameter 5.91"
Maximum Label Width 2.36"
Fonts & Emulation
Language Emulation BXL/POS
Power Description
Power Source AC Supply
Frequency
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature -4°F (-20°C) - 140°F (60°C)
Operating Relative Humidity 10% - 95%
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 95%
Physical Characteristics
Weight (Approximate) 1.54 lb
Documents
ico-plus ico-minus
Document produit bk3-31.pdf BK3-31AA Document produit bk3-31.pdf MOD-BK3-31
