Datamax

Imprimantes d'étiquettes Datamax 200362-100

UGS :

200362-100

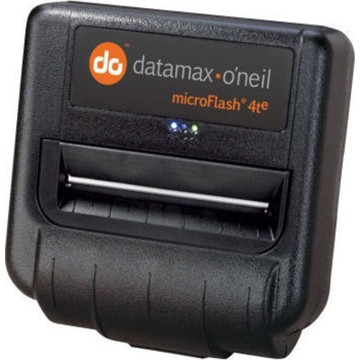

microFlash 4te Portable Direct Thermal Printer (203 dpi, 4 Inch Print Width, 2.5 Inches per Second, Bluetooth and E-Charge)
Description
ico-plus ico-minus
The Datamax-O'Neil microFlash 4t Portable Barcode Printer is designed for today's dynamic supply chain environments. Its rugged, lightweight design allows frontline workers to print 4" wide receipts, labels, and invoices on the go. Built with an unbreakable polyethylene case, the microFlash 4t withstands multiple 6 ft. drops to concrete while ensuring exceptional print quality. With versatile WLAN and Bluetooth connectivity, this printer easily integrates into any operation, enhancing efficiency for manufacturing, distribution, and logistics applications.

Key features:
  • Rugged Design: Survives multiple drops; ideal for mobile use.
  • Wireless Connectivity: Supports WLAN and WPAN for flexible operation.
  • Exceptional Print Quality: 203 dpi resolution for clear output.
  • Long Battery Life: Print thousands of inches on a single charge.
  • Supports Multiple Media Types: Print thermal paper and linerless labels.


Specifications:
  • Dimensions: 7.37 in. x 6.82 in. x 2.67 in.
  • Weight: 39.6 oz. (with batteries and paper roll)
  • Operating Temperature: -20°C to 50°C
  • Drop Rating: 6 ft. / 1.8m
  • Print Speed: Up to 2.5 inches per second
  • Battery Type: 7.2V Lithium Ion
  • Wireless Standards: IEEE 802.11b, Bluetooth 1.1
  • Media Capacity: Up to 1,716" thermal paper or 840" linerless labels
  • Agency Approvals: FCC B, CE, E-Mark
  • Warranty: 1 Year, including printer case

Caractéristiques principales

  • Robuste: Industrial

  • Format de l'équipement: Mobile

  • Connexion: Serial, Bluetooth

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 2 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • PDF-417
  • Aztec Code
  • QR Code
Features Belt Clip
Print Technology Direct Thermal
Memory
Standard Memory 2 MB
Flash Memory 4 MB
Interfaces/Ports
Serial Port Yes
Network & Communication
Bluetooth Yes
Media Types & Handling
Media Type
  • Direct Thermal Paper
  • Synthetic Media
  • UV Coated Media
  • Label
  • Linerless
Maximum Roll Diameter 2.25"
Battery Information
Number of Batteries Supported 2
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 2200 mAh
Miscellaneous
Additional Information
  • External DC charge port
  • Swivel Mount Charging Bracket
  • Prints approx. 6,900" or 1,150 - 6" receipts on a single battery charge (19.3 hours)
  • External DC jack; optional external charge contacts 12-15V, built-in spike and surge protection
Platform Supported PC
Documents
ico-plus ico-minus
Document produit mod-mf4te-datamax-label-printer-datasheet.pdf 200362-100 Document produit mod-mf4te-datamax-label-printer-user-manual.pdf 200362-100 Document produit Logiscenter_Datamax_Microflash.pdf 200362-100 Document produit mod-mf4te-datamax-label-printer-datasheet.pdf MOD-MF4TE Document produit mod-mf4te-datamax-label-printer-user-manual.pdf MOD-MF4TE
