InfinID
Étiquettes InfinID MODEL-18348
UGS :
MODEL-18348

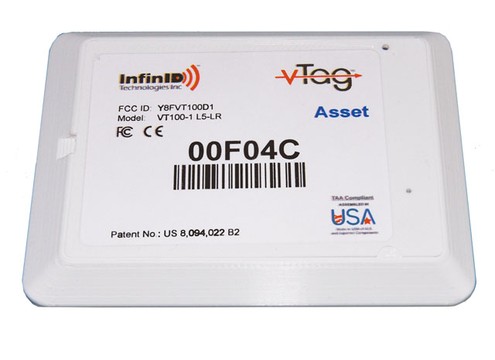

The V-Tag Model INF-VT100-LT is a compact active RFID tag that generates its own mesh network. V-Tag Location Tracking System is accomplished by setting up a fixed tag attached to wall, ceiling, fences and posts around the location being monitored. Track and monitor your assets without costly infrastructure. The moveable tags then calculate their own positions based on the signals received from the fixed tags and from other neighboring tags.
Sélectionner un modèle
Description
The InfinID V-Tag INF-VT100-LT is a compact and advanced active RFID tag designed to revolutionize asset tracking and monitoring. With its ability to generate a mesh network, this tag offers unparalleled capabilities for real-time location tracking, temperature monitoring, and battery status reporting. Its user-friendly setup reduces the need for costly infrastructure, allowing you to track and monitor your assets efficiently. With features like an accelerometer and a beeper, the V-Tag ensures that you stay informed about any movements or threshold events as they happen.
Key Features:
- Location Tracking System (LTS): Easy setup with fixed and moveable tags for accurate tracking.
- Temperature Monitoring: Keeps you informed with a range of -50°C to +75°C.
- Long Battery Life: Up to 3 years with a replaceable battery.
- Accelerometer: Sensitive 3-axis coverage from 0g to 18g.
- Beeper Alert: Immediate notifications for sensor threshold events.
Specifications:
- Model: INF-VT100-LT
- Typical LTS Accuracy: Predicated on fixed tag orientation within a room.
- Latency Reporting: Immediate alerts upon movement; default hourly reporting.
- Dimensions: 3.85in x 2.9in x 0.32in
- Weight: 2.0 Oz
- Frequency Band: 2.4 GHz
- Ingress Protection Rating: IP 63
- Battery: 3.0V 3000-mAh, replaceable (InfinID Model: INF-VT-BAT-3)
- Battery Accuracy: ±0.003V
- Certification: FCC Part 15C Low Power Transceiver/CE
Documents
inf-vt100-lt.pdf MODEL-18348
