Description

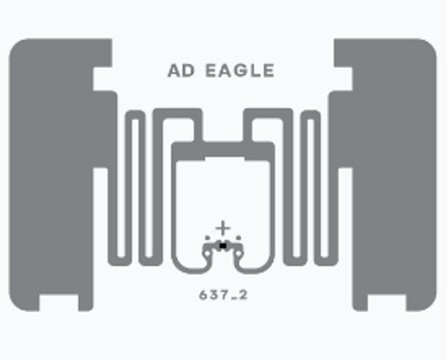

The Avery-Dennison AD Eagle M730 RFID Tag is a compact but powerful tagging solution designed for retail applications. At just 44 x 28 mm, it offers exceptional read range with NXP UCODE 8 technology, ensuring efficient supply chain management and brand protection. This advanced RFID inlay meets international standards, making it an ideal choice for businesses seeking enhanced operational efficiency and product authenticity. Its robust performance is complemented by compliance with ISO 9001 and ISO 14001 standards, ensuring you receive a reliable, environmentally-conscious product.
Key features:
- Frequency Band: UHF 860-960 MHz
- Chip: NXP UCODE 8
- Compact Design: 44 x 28 mm in size
- Memory: 128-bit EPC and TID Memory
- Temperature Range: -40 °C to 85 °C
- Formats: Available in dry inlay, wet inlay, and label sticker
- Compliance: ISO 9001:2015 and ISO 14001:2015
Specifications:
- Die-Cut Dimension: 47 x 31 mm
- Inlay Substrate: PET
- Face Sheet: Mid-gloss paper
- Standard Pitch: 34 mm
- Core Size: 76 mm
- Quantity per Reel: 18,000 pcs
- Reel Quantity: 90,000 pcs/box
Documents
eagle.pdf MODEL-635134
