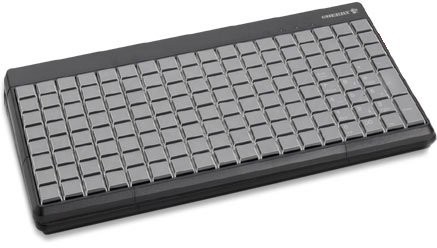

The Cherry G86-6340 SPOS Rows and Columns Series Keyboards are designed for efficiency and durability in point-of-sale and commercial applications. Ideal for various sectors such as grocery, hospitality, and retail, this multifunctional keyboard offers a robust design with an IP54-rated spill and dust-resistant key field. With features like a customizable key layout, a high-performance magnetic stripe reader, and a user-friendly touchpad, the G86-6340 ensures seamless operation in demanding environments.
Key Features
- 144 Key Position Matrix in a compact 14" form factor for universal key function assignment
- Robust product design with IP 54 spill and dust resistance
- Plug & Play configuration for all common POS features
- Fully programmable and relegendable keyboard for easy layout configuration
- High-performance 3-track magnetic stripe reader with configurable headers
- Touchpad version available for easy cursor navigation
- Audible and visual indication of MSR good read
Specifications
- Interface: USB 2.0
- Current Input: Typ. 35 mA
- Durability: 1 million cycles
- Touchpad Resolution: 1000 dpi
- Key Layout: 142/130 position US key layout (default)
- Weight: 1.4 kg (without packaging)
- Dimensions: 360 x 198 x 38 mm (keyboard)
- Storage Temperature: -20°C to 60°C
- Operating Temperature: 0°C to 50°C
- Warranty: 2 years
g86-6340.pdf G86-63410EUADAA
g86-6340.pdf MOD-CHERRY-G86-6340-SPOS-ROWS-AND-COLUMNS-SERIES
