Antennes Réseau FEIG 653500000

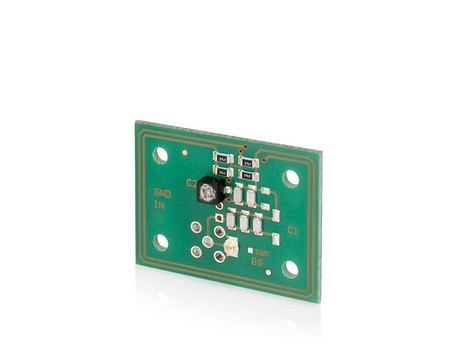

The FEIG ID ANT40/30 RFID Antenna is your ideal solution for seamless integration with HF reader modules, suitable for various applications such as e-ticketing, e-mobility, and closed-loop payments. Operating at a frequency of 13.56 MHz, this antenna boasts a maximum transmitting power of 1 W, ensuring efficient data transfer rates of up to 424 kbits/s, with a reading distance of up to 7 cm. Available in two connector options, the ID ANT40/30 is designed to operate reliably within a wide temperature range, making it a versatile choice for enhancing RFID systems.

• Frequency: 13.56 MHz
• Max. Transmitting Power: 1 W
• Data Transfer Rate: Up to 424 kbits/s
• Reading Distance: Up to 7 cm
• Connector Options: 2-pin or U.FL
• ISO Standards: Supports ISO 14443-A/B and ISO 15693

• Model Name: ID ANT40/30
• Dimensions: 40 mm x 30 mm
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 0% to 95% (non-condensing)
• Impedance: 500 Ω
• Supported Products: ID MO2.M8-B, ID MRM102-A, ID MRM102-USB, ID CPR74-x
