Description

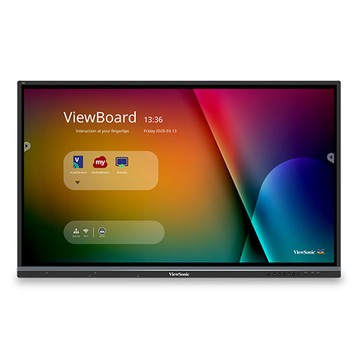

The ViewSonic ViewBoard Interactive series brings collaboration to life with its stunning 4K resolution and multi-touch capabilities. Whether in a classroom or conference room, these interactive touchscreen displays foster engagement and creativity. With various screen sizes from 43" to 98", each model supports seamless connectivity, making presentations and brainstorming sessions vibrant and intuitive. The embedded media player allows for standalone operations, ensuring a smooth and interactive user experience.
Key Features
Specifications
Key Features
- Multiple Sizes: Available in sizes ranging from 43" to 98", suitable for any space.
- High Resolution: 3840 x 2160 4K Ultra HD for crisp visuals.
- Multi-Touch Capability: Up to 20 touch points for a collaborative experience.
- Embedded Media Player: Built-in for standalone operation without a PC.
- Extensive Connectivity: HDMI, DisplayPort, USB, and Ethernet options available.
Specifications
- Screen Sizes:
- 43", 55", 65", 75", 86", 98"
- Resolution: 3840 x 2160
- Touch Points: 10 to 20 point touch depending on model
- Dimensions (W x H x D):
- 43": 38.1 x 21.9 x 2.2 in.
- 55": 49.9 x 30.4 x 3.3 to 51.3 x 31.5 x 5.6 in.
- 65": 58.6 x 35.3 x 3.5 to 59.9 x 36.3 x 29.5 in.
- 75": 67.3 x 40.2 x 3.5 to 69.4 x 41.0 x 29.5 in.
- 86": 77.1 x 45.7 x 3.5 to 78.3 x 46.7 x 29.5 in.
- 98": 88.4 x 52.1 x 3.6 in.
- Operating Time: 16/7
- Connectivity Options:
- HDMI 2.0 (up to 3 inputs), VGA, DisplayPort
- USB (type A & B), Ethernet LAN (RJ45), WiFi module slot
Technical Specifications
| Display & Graphics | |
|---|---|
| Viewable Screen Size | 55" |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Contrast Ratio | 1,200:1 |
| Brightness | 350 Nit |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Tempered Glass | Yes |
| Touchscreen Information | |
|---|---|
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 20 |
| Touchscreen Technology | Infrared (IrDA) |
| Processor & Chipset | |
|---|---|
| Processor Type | Cortex A53 |
| Processor Speed | 1.20 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
|---|---|
| Standard Memory | 4 GB |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 32 W |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Wireless LAN | Yes |
| Interfaces/Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Composite Video | Yes |
| DisplayPort | Yes |
| S/PDIF Out | Yes |
| Software | |
|---|---|
| Operating System Platform | Android |
| Operating System | Android 13 |
| Software Included | vBoard Software |
| Power Description | |
|---|---|
| Input Voltage |
|
| Physical Characteristics | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 400 x 200 |
| Height | 30.4" |
| Width | 49.9" |
| Depth | 3.3" |
| Weight (Approximate) | 58.20 lb |
| Miscellaneous | |
|---|---|
| Country of Origin | China |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance |
|
Documents
viewboard-interactive.pdf IFP5550
viewboard-interactive.pdf MOD-VIEWSONIC-VIEWBOARD-INTERACTIVE
