Tripp-Lite

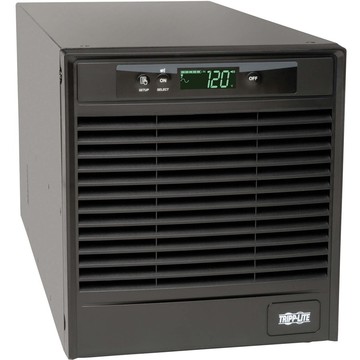

Accessories Tripp-Lite SU1500XLCD

UGS :

SU1500XLCD

Power Systems & Supplies, Tripp-Lite, SmartOnline 120V 1.5kVA 1.35kW Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Overload Protection Yes
Bypass Switch Automatic
Emergency Power OFF Yes
Transfer Time 0 ns
Phase Single Phase
Application/Usage
  • Network Device
  • IT Equipment
Power Description
Load Capacity (VA) 1500 VA
Load Capacity (Watt) 1350 W
Input Voltage 120 V AC
Output Voltage
  • 100 V AC
  • 110 V AC
  • 120 V AC
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 190 J
Input Power Factor 0.99
Output Power Factor 0.9
Display & Graphics
Display LCD
Management
Network Management SNMP
Alarm
  • Remote Shutdown
  • UPS StartUp
  • Power Failure
  • Overload
  • UPS Fault
  • Low Battery
Interfaces/Ports
Serial Port Yes
USB Yes
Battery Information
DC System Voltage 48 V DC
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 5.80 Minute
Backup/Run Time (Half Load) 16.50 Minute
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Replaceable Battery Yes
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 32°F (0°C) - 104°F (40°C)
Maximum Operating Elevation 9842.52 ft
Physical Characteristics
Height 9.9"
Width 6.3"
Depth 17.1"
Rack Height 2U
Form Factor Tower
Weight (Approximate) 40.79 lb
Miscellaneous
Package Contents
  • SmartOnline SU1500XLCD 1500VA Tower UPS
  • USB Cable
  • DB9 Cable
  • Quick Start Guide
    		•
    Certifications & Standards
    • UL1778
    • CSA
    • NOM
    • FCC Part 15 Category A (EMI)
    Software Included PowerAlert Software
    Energy Star Yes
    Country of Origin Philippines
    Environmentally Friendly Yes
    Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 2 Year
