Tripp-Lite

Accessories Tripp-Lite SR48UBDPWD

UGS :

SR48UBDPWD

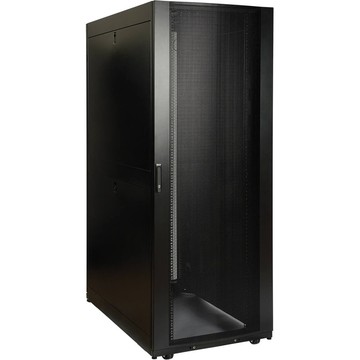

Racks, Tripp-Lite, 48U SmartRack Deep and Wide Rack Enclosure Cabinet with doors & side panels
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Physical Characteristics
Color Family Black
Product Color Black
Units Per Pallet 1
Dynamic/Rolling Weight Capacity 2250 lb
Static/Stationary Weight Capacity 3000 lb
Height 89"
Width 29.5"
Depth 47.3"
Weight (Approximate) 376.99 lb
Rack Height 48U
Rack Width 19"
Miscellaneous
Package Contents
  • 48U SmartRack Deep and Wide Premium Enclosure (Includes Doors and Side Panels)
  • Mounting Hardware
  • 50 x M6 Cage Nuts
  • 50 x M6 Screws
  • Stabilizing Bracket
  • 4 x Side Panels
  • 4 x Side Panel Locks
  • 2 x Door and Side Panel Keys
  • 50 x M6 Washers
  • 1 x Allen Wrench
  • Owner's Manual
Additional Information
  • Grounding Lug: Front and back door frames
  • EIA-310-E Certification
  • UL60950 Approval
  • Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
  • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
  • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
  • Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
  • Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
  • Maximum usable internal depth of 42 inches/1075mm (front to rear rail).
  • Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 29.5".
  • Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.
  • Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.
  • Open bottom for cable access.
  • Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.
Assembly Required No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
