Tripp-Lite

Accessories Tripp-Lite SMART2200NET

UGS :

SMART2200NET

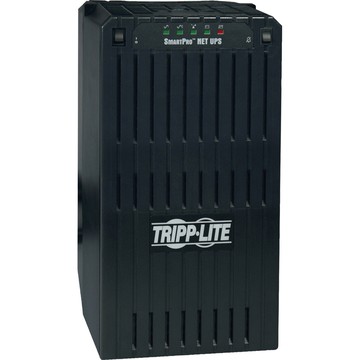

Tripp Lite UPS Smart 2200VA 1700W Tower AVR 120V XL DB9 for Servers - Tower - 4 Hour Recharge - 11 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Cord Length 8 ft
Transfer Time 4 ms
Power Description
Load Capacity (VA) 2200 VA
Load Capacity (Watt) 1700 W
Input Voltage 120 V AC
Output Voltage 120 V AC
Waveform Type Pulse-width Modulated Sine Wave
Surge Energy Rating 720 J
Management
Network Management SNMP Manageable
Alarm On Battery
Controls/Indicators
Status Indicators Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Interfaces/Ports
Total Number of Expansion Slots 3
Battery Information
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 11 Minute
Backup/Run Time (Half Load) 27 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Environmental Conditions
Maximum Operating Temperature 122°F (50°C)
Physical Characteristics
Color Family Gray
Product Color Gray
Height 17"
Width 9"
Depth 12.5"
Form Factor Tower
Weight (Approximate) 80 lb
Miscellaneous
Package Contents
  • SMART2200NET UPS System
  • PowerAlert Software CD
  • 3 x 6-ft. network cables
  • Warranty information
  • Instruction manual
Additional Information
  • SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
  • 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices
  • Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts)
  • Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications)
  • Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V
  • Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands
  • Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software
  • In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity
  • Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment
  • Diagnostic LEDs (indicate 17 performance conditions)
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
  • $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
Certifications & Standards UL1778 (USA), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included PowerAlert Software
Recycled No
Assembly Required No
Country of Origin China
Warranty
Limited Warranty 3 Year
