Tripp-Lite

Accessories Tripp-Lite SMART1500RM2U

UGS :

SMART1500RM2U

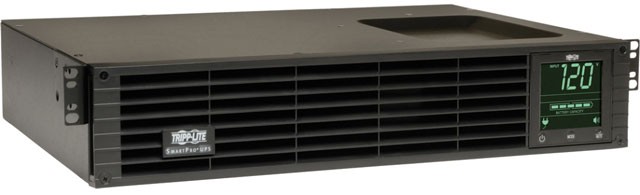

Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM - 2U - 4 Hour Recharge - 4.50 Minute Stand-by - 110 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Overload Protection Yes
Emergency Power OFF Yes
Cord Length 10 ft
Transfer Time 4 ms
Power Description
Load Capacity (VA) 1500 VA
Load Capacity (Watt) 1350 W
Input Voltage 110 V AC
Output Voltage 120 V AC
Waveform Type Sine Wave
Surge Energy Rating 570 J
Management
Network Management SNMP/Webcard
Alarm
  • On Battery
  • Overload
  • Low Battery
Controls/Indicators
Status Indicators LED Indicator
Interfaces/Ports
USB Yes
Total Number of Expansion Slots 1
Battery Information
DC System Voltage 36 V DC
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 4.50 Minute
Backup/Run Time (Half Load) 13 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Hot Swappable Yes
Replaceable Battery Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation 6561.68 ft
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 45 dB(A)
Thermal Dissipation 78.25 W
Physical Characteristics
Height 3.5"
Width 17.5"
Depth 13.5"
Rack Height 2U
Form Factor Rack-mountable
Weight (Approximate) 46 lb
Miscellaneous
Package Contents
  • SmartPro 1500RM2U UPS
  • Mounting hardware for 4 post rackmount installation
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Warranty information
Additional Information
  • SMART1500RM2U line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network grade AC surge suppression
  • 1500VA / 1350 watt power handling ability and full time sine wave output offers guaranteed compatibility with properly sized networking, telecom and other sensitive electronic devices
  • Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post mountable with optional 2POSTRMKIT accessory, upright tower installation supported with optional
  • 2-9USTAND accessory
  • Large internal batteries offer runtimes of 25 minutes at half load (750VA / 500 watts) and 10 minutes at full load (1500VA / 1350 watts)
  • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V
  • Includes 8 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank)
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additoinal UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities
  • Communications ports support messaging of UPS and line power status, including on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
  • Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
  • Emergency Power Off (EPO) interface with cable
  • Multi-function audible alarms and set of 5 front panel LEDs
  • Network-grade AC surge suppression
  • Attractive all-black color scheme
  • UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
  • This unit has an LCD screen
  • Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Recycled No
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
