Tripp-Lite
Accessories Tripp-Lite SMART1500LCD
UGS :
SMART1500LCD

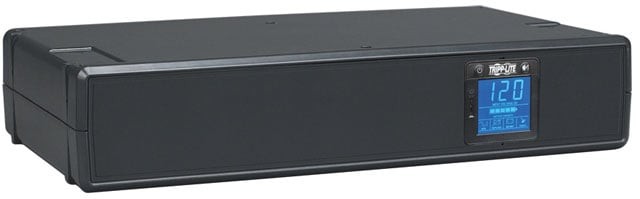

Tripp Lite UPS Smart 1500VA 900W Rackmount Tower Battery Back Up LCD AVR 120V USB DB9 RJ45 - 2U Rack/Tower - 8 Hour Recharge - 3.50 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - 8 x NEMA 5-15R
Description
Products and parts from Tripp-Lite.
Technical Specifications
| Technical Information | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Protection Type |
|
| Cord Length | 6 ft |
| Transfer Time | 4 ms |
| Power Description | |
|---|---|
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| Interfaces/Ports | |
|---|---|
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Height | 17.3" |
| Width | 3.5" |
| Depth | 10.5" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 29 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Recycled | No |
| Post-consumer-waste% | 0% |
| Assembly Required | No |
| Country of Origin | Taiwan |
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
