Tripp-Lite

Accessories Tripp-Lite ECO750UPS

UGS :

ECO750UPS

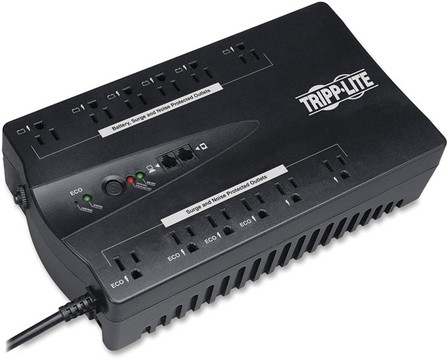

Tripp Lite UPS 750VA 450W Eco Green Battery Back Up Compact 120V USB RJ11 50/60Hz - Desktop - 20 Hour Recharge - 2 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - 12 x NEMA 5-15R
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 12 x NEMA 5-15R
Number of Battery & Surge Outlets 6
Number of Surge-only Outlets 6
Dataline Protection
  • RJ-11
  • RJ-45
Transfer Time 6 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Application/Usage
  • Kiosk
  • Security System
  • Business
  • Computer
  • Router
  • Printer
  • TV
  • Blu-ray Player
  • Gaming Console
  • ATM
  • Digital Signage
Power Description
Load Capacity (VA) 750 VA
Load Capacity (Watt) 450 W
Input Voltage 120 V AC
Output Voltage
  • 110 V AC
  • 115 V AC
  • 120 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 316 J
Management
Alarm
  • Low Battery
  • Fault
  • Overload
  • Replace Battery
Controls/Indicators
Status Indicators

3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
USB Yes
USB (HID Compliant) Port Yes
Battery Information
DC System Voltage 12 V DC
Backup/Run Time (Full Load) 2 Minute
Backup/Run Time (Half Load) 8.60 Minute
Typical Battery Recharge Time 6.50 Hour
Replaceable Battery Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft
Physical Characteristics
Height 3.4"
Width 5.1"
Depth 12.2"
Form Factor Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate) 6.82 lb
Miscellaneous
Package Contents
  • ECO 750VA Desktop UPS
  • Owner's Manual
  • USB Cable
Additional Information
  • 99% line-mode efficiency saves energy and operating costs
  • 4 built-in "ECO" outlets save power by automatically turning off connected accessories when the computer is not in use
  • Input cord length 6 ft / 1.8m
  • This product is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment
Certifications & Standards

UL Listed Certification
Recycled No
Assembly Required No
Energy Star Yes
Country of Origin Vietnam
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Additional Warranty Information

2 year $100,000 connected equipment guarantee
