Raytec

Accessories Raytec VAR2-POE-I2-1

UGS :

VAR2-POE-I2-1

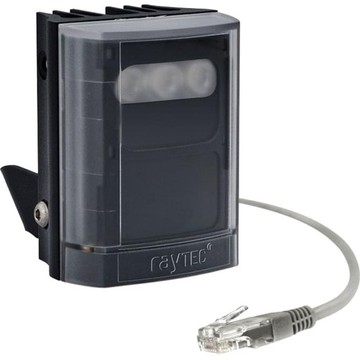

Raytec VAR2-PoE-i2-1 Short Range Infra-Red PoE Illuminator - PoE, Interchangeable Lens, Hot-spot Reduction Technology (HRT), Night Vision, Programmable, Platinum Elite SMT LED Technology, Advanced Security Setting, LED Indicator, LED Illumination, Green Technology, Energy Saving, ... - Surveillance, Lighting Control - Black
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
VARIO2 PoE Illuminator, i2 850nm, POE
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Smart Light System
  • Video Surveillance System
  • Lighting Control
Features
  • PoE
  • Interchangeable Lens
  • Hot-spot Reduction Technology (HRT)
  • Night Vision
  • Programmable
  • Platinum Elite SMT LED Technology
  • Advanced Security Setting
  • LED Indicator
  • LED Illumination
  • Green Technology
  • Energy Saving
  • Even Illumination
  • Automatic On/Off
Physical Characteristics
Product Color Black
Height 4"
Width 3"
Depth 2.5"
Weight (Approximate) 1.30 lb
Miscellaneous
Additional Information Illuminator:
  • Max Distance 62m (203ft)
  • Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50° Input PoE IEEE 802.3af or 24V DC (24V DC
  • Input available on Premium versions only)
  • Consumption 8W
  • Beam Shape Elliptical with HRT (Hot-spot Reduction Technology)
  • Beam Angle System VARIO Interchangeable Lens System
  • LED type Platinum Elite SMT LEDs
  • Number of LEDs 3
  • Wavelength 850nm (940nm options available)
  • Temperature Range -50 to +50°C (-58 to 122°F)
  • Cable Length 2.5m
Integrated Command and Control Technology:

Integrated Standard Features:
  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell sensitivity adjust
  • LED status indicator provides status on performance of the unit
  • LED status indicator on/off
  • Disable programming mode
Advanced Features (accessed via VARIO remote control):
  • Timer function (up to 30 mins)
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Advanced Features available on VARIO2 PoE Premium variants (contact Raytec):
  • Telemetry input
  • Photocell following output
  • 24V DC power input
Application/Usage Surveillance
Certifications & Standards IP66
Country of Origin United Kingdom
