Raytec

Accessories Raytec VAR2-I8-3

UGS :

VAR2-I8-3

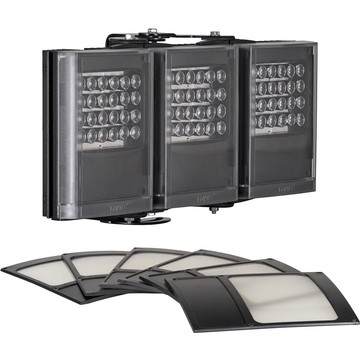

Raytec VAR2-i8-3 Long Range Infra-Red Illuminator - Platinum Elite SMT LED Technology, Hot-spot Reduction Technology (HRT), Interchangeable Lens, Adjustable Light Intensity, Programmable, Even Illumination, LED Indicator, LED Illumination, Advanced Security Setting, Green Technology, Energy Saving, ... - Black
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Vario2 i8 Infrared illmtr with 10,35 & 6
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Smart Light System
Features
  • Platinum Elite SMT LED Technology
  • Hot-spot Reduction Technology (HRT)
  • Interchangeable Lens
  • Adjustable Light Intensity
  • Programmable
  • Even Illumination
  • LED Indicator
  • LED Illumination
  • Advanced Security Setting
  • Green Technology
  • Energy Saving
  • Night Vision
Physical Characteristics
Product Color Black
Height 9"
Width 17"
Depth 3"
Weight (Approximate) 13.20 lb
Miscellaneous
Additional Information Illuminator:
  • Max Distance 606m (1,988ft)
  • Angle Each panel includes a standard pack of 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
  • Input 12/24V AC/DC
  • Consumption 138W max
  • Number of LEDs 72
  • Wavelength 850nm (940nm options available)
  • Temperature Range -50° to +50°C (-58 to 122°F)
  • Cable Length 2.5m
Integrated Command and Control Technology:

Integrated Standard Features:
  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • Photocell sensitivity adjust
  • LED status indicator provides status on performance of the unit
  • LED status indicator on/off
  • Disable programming mode
Advanced Features (accessed via VARIO remote control):
  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Certifications & Standards IP66
Country of Origin United Kingdom
