Raytec

Accessories Raytec VAR2-I8-1-C

UGS :

VAR2-I8-1-C

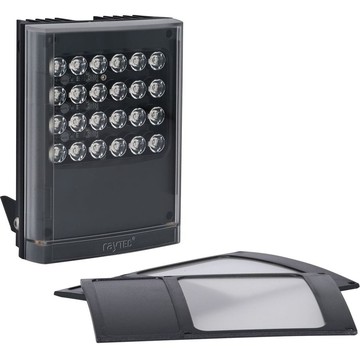

Raytec VAR2-i8-1 Long Range Infra-Red Illuminator - Interchangeable Lens, Hot-spot Reduction Technology (HRT), LED Indicator, LED Illumination, Platinum Elite SMT LED Technology, Advanced Security Setting, Green Technology, Night Vision, Remote Control, Automatic On/Off, Programmable, ... - Surveillance, Lighting Control - Black
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
10,35 & 60 degree, Covert, 940nm
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Smart Light System
  • Lighting Control
Features
  • Interchangeable Lens
  • Hot-spot Reduction Technology (HRT)
  • LED Indicator
  • LED Illumination
  • Platinum Elite SMT LED Technology
  • Advanced Security Setting
  • Green Technology
  • Night Vision
  • Remote Control
  • Automatic On/Off
  • Programmable
  • Energy Saving
Physical Characteristics
Product Color Black
Height 7"
Width 2.6"
Depth 5"
Weight (Approximate) 3.60 lb
Miscellaneous
Additional Information Illuminator:
  • Max Distance: 3 5 0 m (1,14 8 f t)
Angle:
  • Standard pack includes 10° circular +
  • 35° x 10° (fitted as standard) and
  • 60° x 25°elliptical lenses.
  • Additional optional lenses:
  • 80° x 30°, 120° x 50°
  • Input: 12/24V AC/DC
  • Consumption 46W
  • Beam Shape Elliptical with HRT (Hot-spot Reduction
  • Technology)
  • Beam Angle System VARIO Interchangeable Lens System
  • LED type Platinum Elite SMT LEDs
  • Number of LEDs 24
  • Wavelength 850nm (940nm options available)
  • Temperature Range -50° to +50°C (-58 to 122°F)
Integrated Command and Control Technology

Integrated Standard Features

  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • Photocell sensitivity adjust
  • LED status indicator provides status on
  • performance of the unit
  • LED status indicator on/off
  • Disable programming mode

Advanced Features (accessed via VARIO remote control)

  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Application/Usage Surveillance
Certifications & Standards IP66
Country of Origin United Kingdom
