Raytec

Accessories Raytec VAR2-I2-2

UGS :

VAR2-I2-2

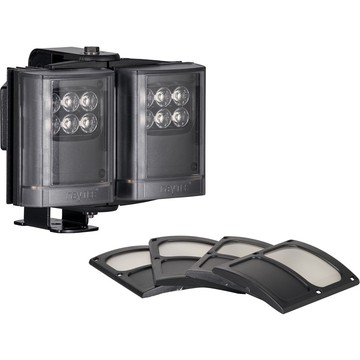

Raytec VAR2-i2-2 Medium Range Infra-Red Illuminator - Interchangeable Lens, Platinum Elite SMT LED Technology, Advanced Security Setting, Hot-spot Reduction Technology (HRT), LED Indicator, Green Technology, Programmable, LED Illumination, Energy Saving, Even Illumination, Night Vision - Black
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
VAR2-i2-2, 10,35 & 60 degree, 850nm
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Smart Light System
Features
  • Interchangeable Lens
  • Platinum Elite SMT LED Technology
  • Advanced Security Setting
  • Hot-spot Reduction Technology (HRT)
  • LED Indicator
  • Green Technology
  • Programmable
  • LED Illumination
  • Energy Saving
  • Even Illumination
  • Night Vision
Physical Characteristics
Product Color Black
Height 6"
Width 5"
Depth 2.5"
Weight (Approximate) 3.30 lb
Miscellaneous
Additional Information Illuminator:
  • Max Distance 120m (394ft)
  • Angle Each panel includes a standard pack of 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
  • Input 12/24V AC/DC
  • Consumption 20W max
  • Number of LEDs 12
  • Wavelength 850nm (940nm options available)
  • Temperature Range -50° to +50°C (-58 to 122°F)
  • Cable Length 2.5m
Integrated Command and Control Technology:

Integrated Standard Features:
  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • Photocell sensitivity adjust
  • LED status indicator provides status on performance of the unit
  • LED status indicator on/off
  • Disable programming mode
Advanced Features (accessed via VARIO remote control):
  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Certifications & Standards IP66
Country of Origin United Kingdom
