Opticon

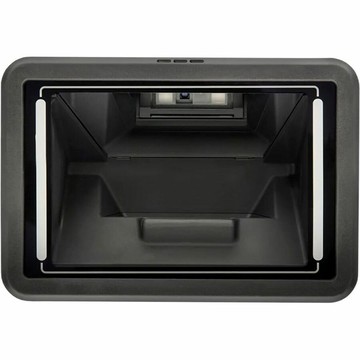

Accessories Opticon M11BU1S-00

UGS :

M11BU1S-00

M-11 2D CMOS IMAGER, OMNIDIRECTIONAL USB
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
Products and parts from Opticon.
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic, USPS

2D:

  • Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix (ECC200), Maxi Code, MicroPDF417, Micro QR Code, Passport MRZ (OCR-B), PDF417, QR Code

POSTAL CODES:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Dutch KIX code, UK Postal, Postal JPN, POSTNET, PLANET
Light Source LED
Image Sensor Type
  • CMOS
  • Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanning Distance 9.20"
Reading Angle (Skew) 70°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Motion Tolerance 100 in/s
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 100000 lux
Drop Specification

5 ft (1.5 m) drop onto concrete surface
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 15 mil
Image Sensor Resolution 1280 x 800
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 23°F (-5°C) to 113°F (45°C)
Storage Temperature -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing) 10% to 90%
Physical Characteristics
Form Factor Fixed Mount
Color Family Black
Product Color Black
Durability Dust Resistant
Height 1.9"
Width 3.3"
Depth 4.9"
Weight (Approximate) 7.44 oz
Miscellaneous
Ingress Protection (IP) Rating IP42
Application/Usage
  • Healthcare
  • Retail
  • Manufacturing
  • Transportation
  • Logistics
Country of Origin Japan
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
