Keyscan

Accessories Keyscan K-KPR

UGS :

K-KPR

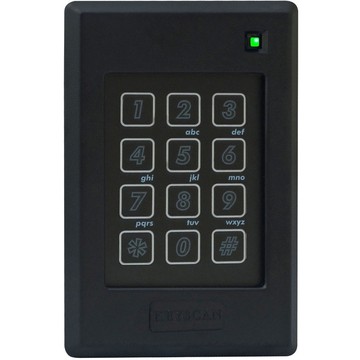

Keyscan K-KPR Card Reader/Keypad Access Device - Proximity, Key Code - 12 V DC
ico-puzzle-piece-02 Ce produit est compatible avec...
Technical Specifications
ico-plus ico-minus
Technical Information
Identification Method
  • Proximity
  • Key Code
Application/Usage Door
Controls/Indicators
Indicators & Controls
  • Buttons provide audible feedback
  • Blue backlighting for easy use in low light areas
  • Raised'pip'onthe 5 keyfor visually
Power Description
Input Voltage 12 V DC
Input Current 115 mA
Physical Characteristics
Product Color Black
Height 4.6"
Width 3"
Depth 0.7"
Weight (Approximate) 8.78 oz
Miscellaneous
Additional Information
  • May be used on non-Keyscan systems with many HID 125kHz card protocols
  • Suitable for outdoor use in all weather conditions
  • Keypad labeled with alpha-numeric identifiers
  • Pass-thru Wiegand output standard
  • Pin entry outputs an 8-bit burst
  • Epoxy encased electronics provide reliable operation
  • Convenient mounting to a single gang wall box
  • Ideal for applications that require enhanced security by enforcing both card presentation and PIN entry for secured areas
  • For applications where cards are not issued, users may be assigned a temporary or permanent
  • PIN with designated access privileges
  • Mounts on a single gang electrical box
  • Membrane style keypad surface prevents malfunction due to dust and debris accumulation Keypad surface does not leave finger print smudges
Compatibility

compatible supporting most HID 125 kHz credentials
Warranty
Limited Warranty Lifetime
