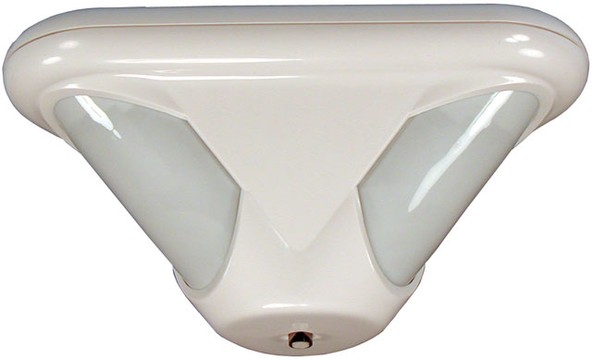

Accessories Bosch DS9370

The Bosch DS9370 Series Motion Detector is your ultimate line of defense against intruders. Engineered for ceilings up to 25 ft (7.6 m), this high-performance TriTech® detector combines passive infrared (PIR) and microwave detection technologies to provide rapid response times without false alarms. With fully adjustable optical arrays, you can customize coverage for any environment. Ideal for both commercial and residential security systems, its intuitive design features a hinged chassis for easy installation and a high-efficiency LED for effortless walk testing. Count on Bosch for reliable security solutions.

• Up to 25 ft (7.6 m) mounting height
• Fully-adjustable optical arrays for customized coverage
• Easy installation with hinged chassis and base plate
• High-efficiency LED and light-pipe system for easy testing
• First Step Processing (FSP) eliminates false alarms
• 360° x 70 ft (20 m) coverage pattern

• Environmental Considerations:
  • Operating Temperature: -40°F to +120°F (-40°C to +49°C)
• Power Requirements:
  • Input Power: 9 VDC to 15 VDC
  • Standby Current: 29 mA; Alarm Current: 39 mA
• Alarm Outputs:
  • Form C reed relay rated at 3.0 W, 125 mA @ 28 VDC
  • Normally-closed tamper switch rated at 28 VDC, 125 mA max
• Dimensions:
  • 3.5 in. x 7 in. (8.9 cm x 17.8 cm)
  • High impact ABS plastic enclosure
