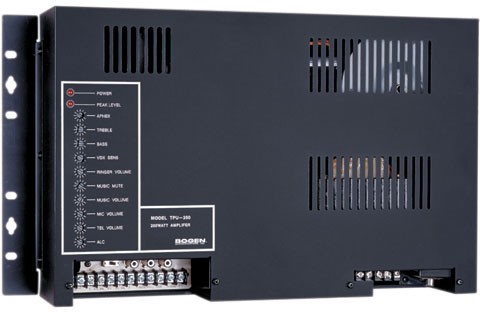

Accessories Bogen TPU35B

The Bogen TPU Series Amplifiers are top-tier public address solutions that combine versatility and power in a sleek, wall-mounted design. Available in models rated at 35, 60, 100, and 250 watts, these amplifiers enable seamless telephone and microphone paging, along with background music input through RCA jacks or screw terminals. Features such as automatic level control, adjustable music mute, and a built-in night ringer ensure crystal-clear communication in your workplace, even during non-business hours. The TPU250 model is also rack-mountable, making it a perfect fit for various installation preferences.

Key Features

• Multiple wattage options: 35W, 60W, 100W, and 250W models.
• VOX sensitivity control: Reduces background noise during paging.
• Aural Exciter technology: Improves voice clarity and reduces listener fatigue.
• Adjustable music mute: Customizes background music levels when paging.
• Built-in night ringer: Alerts personnel of incoming calls after hours.
• Thermal and electronic overload protection: Ensures safe operation.

Specifications

• Power Output: TPU35B: 35W RMS; TPU60B: 60W RMS; TPU100B: 100W RMS; TPU250: 250W RMS
• Frequency Response: 70Hz to 15kHz ±1dB
• Distortion: Less than 1%
• Inputs:
  • Balanced 600-ohm telephone line
  • LO-Z balanced microphone
  • Optional music input (RCA jack or screw terminals)
• Outputs: Balanced/unbalanced, 16-ohm, 25V, 25VCT, and 70V
• Dimensions: TPU35/60/100B: 14-3/16"W x 8-3/8"H x 3-5/8"D, TPU250: 19"W x 10-1/2"H x 3-13/16"D
• Weight: TPU35B: 16 lbs; TPU60B: 17 lbs; TPU100B: 21 lbs; TPU250: 31 lbs
• Operating Temperature: -4°F to 131°F
• Power Requirements: 120V AC, 60Hz
