Description

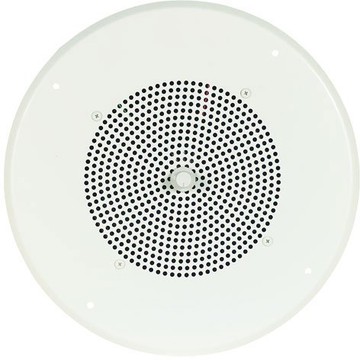

The Bogen CS1EZ is a high-performance ceiling speaker specifically designed for seamless integration with 70V amplifier systems. Featuring an 8-inch cone speaker, it guarantees exceptional audio clarity across a wide frequency range of 50 Hz to 12 kHz. The stylish 13-inch diameter steel grille finished in white enamel ensures a clean look, making it ideal for commercial spaces. Pre-assembled for effortless installation, the CS1EZ includes a convenient volume control knob on the faceplate.
Key Features
Specifications
Key Features
- 1W single-tap design for optimal sound output
- Screw terminal connections for quick and easy installation
- Compatible with 70V amplifier outputs
- Breathtaking audio quality from an 8" cone speaker
- Heavy-duty, wire-wound volume control knob for easy adjustments
- Pre-assembled to facilitate faster setup
- Tile bridge (Model TB8) available to support speaker weight (not included)
Specifications
- Power Rating (RMS): 1 watt continuous
- Frequency Response: 50 Hz to 12 kHz
- Impedance: 4900 ohms (for use on 70V amplifier outputs)
- Sound Pressure Level: 95 dB @ 4 ft. with a 1-watt input on axis
- Dimensions: 13" Dia. x 3-1/4" D
- Product Weight: 3 lb.
- Finish: Semi-gloss white enamel
Technical Specifications
| Technical Information | |
|---|---|
| RMS Output Power | 1 W |
| Minimum Frequency Response | 50 Hz |
| Maximum Frequency Response | 12 kHz |
| Impedance | 4.9 Kilo Ohm |
| Sound Pressure Level | 95 dB |
| Speaker Size | 8" |
| Physical Characteristics | |
|---|---|
| Product Color | White |
| Grill Material | Steel |
| Form Factor | Ceiling Mountable |
| Width | 1" |
| Depth | 3.25" |
| Diameter | 13" |
| Weight (Approximate) | 3 lb |
| Miscellaneous | |
|---|---|
| Additional Information |
|
Documents
cs1ez.pdf CS1EZ
cs1ez.pdf MOD-BOGEN-CS1EZ
