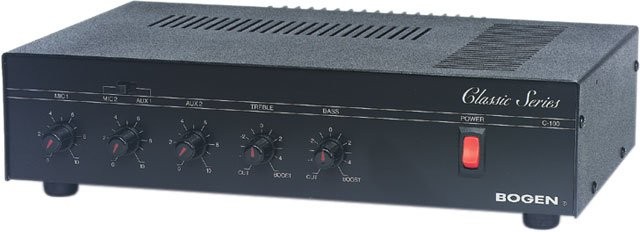

Bogen Classic C100 Amplifier - 100 W RMS - 220 W
Description
The Bogen C100 Public Address Amplifier is the ultimate solution for your audio needs, offering robust performance and versatile connectivity options. Part of the Classic Series, this 100-watt amplifier seamlessly integrates various audio sources, ensuring crystal-clear sound whether you're connecting microphones, telephones, or auxiliary devices. It is perfectly suited for both professional and commercial environments, providing a reliable solution for all your public address requirements.
Key Features
- Power Output: 100 watts
- Multiple Inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC/AUX
- Independent Volume Control: Each input has its own volume setting
- Treble and Bass Controls: ±11 dB adjustments
- VOX Mute: Voice-activated muting for telephone paging
- Thermal Protection: Ensures safe operation
- Rack Mountable: Easily fits in 19-inch equipment racks
Specifications
- Power Output (RMS): 100W
- Frequency Response: 70 Hz to 20 kHz
- Input Sensitivity:
- MIC (Lo-Z Balanced): 600μV
- AUX: 85mV
- TEL: 75mV
- Outputs: 4 ohms (direct), 8 ohms, 16 ohms, 25V, 70V
- Dimensions: 14-1/2" W x 3-3/4" H x 11" D
- Shipping Weight: 20 lb.
Spécifications techniques
| Technical Information | |
|---|---|
| Minimum Frequency Response | 70 Hz |
| Features | Thermal Overload Cutoff |
| Audio | |
|---|---|
| RMS Output Power | 100 W |
| Equalizer Modes |
|
| Power Description | |
|---|---|
| Input Voltage | 110 V AC |
| Frequency | 60 Hz |
| Operating Power Consumption | 220 W |
| Physical Characteristics | |
|---|---|
| Height | 3.8" |
| Width | 14.5" |
| Depth | 11" |
| Length | 12" |
| Weight (Approximate) | 19 lb |
| Miscellaneous | |
|---|---|
| Certifications & Standards |
|
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
Documents
c35-c60-c100.pdf C100
c35-c60-c100.pdf MOD-BOGEN-C100
