Accessories Bogen BOGEN-M-CLASS

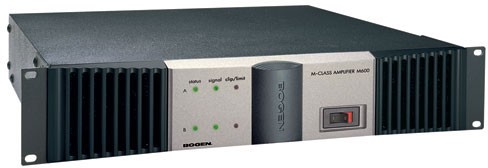

The Bogen M-Class Public Address Equipment delivers massive power and outstanding performance for all your audio needs. Designed for reliability and flexibility, this amplifier can operate in 70V Mono, Dual Mono, or Stereo modes, providing up to **600W per channel** or **1200W in Mono mode**. With user-settable priority levels and a variety of input modules to choose from, the M-Class is versatile enough to handle any audio situation, from complex installations to simple setups. Made with a durable 14-gauge steel chassis, this equipment ensures long-lasting performance without compromising on sound quality.

• Up to **600W per channel** @ 4 ohms
• 3 operating modes: **70V Mono**, **Dual Mono**, or **Stereo**
• **Flexible modular input capability** with 2-module capacity
• Low noise and low distortion for high-quality sound
• Clip detection and limiting circuits for speaker protection
• Energy-saving Sleep Mode for idle periods
• **Back-Slope AC voltage stabilization** for reliable performance

• Power Output:
• 600W @ 4 ohms (both channels driven)
• 1200W for 70V Mono systems
• Input Sensitivity: 1.161V for 600W @ 4 ohms
• S/N Ratio (20K BW): 109 dB ref. 8 ohms
• Load Impedance: 4-8 ohms
• Dimensions: 17" x 3-1/2" x 16"
• Weight: 46 lb.
• Cooling: Forced air variable speed fan
• Temperature Range: 15 to 105 degrees F
