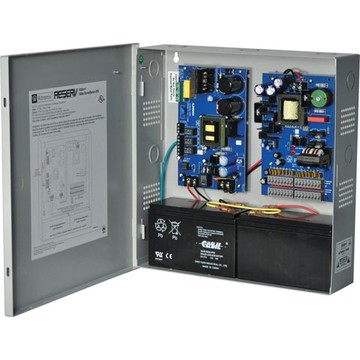

Altronix ReServ1 Tower UPS - Tower - 120 V AC Input - 24 V DC, 12 V DC Output - 16 x DC Power
Description
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Spécifications techniques
| Technical Information | |
|---|---|
| Receptacle Type | DC Power |
| Receptacle Detail | 16 x DC Power |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| Power Description | |
|---|---|
| Input Voltage | 120 V AC |
| Input Current | 3.50 A |
| Output Voltage |
|
| Output Current | 4 A |
| Input Frequency | 60 Hz |
| Battery Information | |
|---|---|
| DC System Voltage | 12 V DC |
| Number of Batteries | 2 |
| Battery Capacity | 7000 mAh |
| Environmental Conditions | |
|---|---|
| Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
| Thermal Dissipation | 17.88 W |
| Physical Characteristics | |
|---|---|
| Height | 13.5" |
| Width | 13" |
| Depth | 3.3" |
| Form Factor | Tower |
| Weight (Approximate) | 10.36 lb |
| Miscellaneous | |
|---|---|
| Certifications & Standards |
|
| Country of Origin | United States |
| Warranty | |
|---|---|
| Limited Warranty | Lifetime |
