Altronix

Accessories Altronix ALTV248300ULM3

UGS :

ALTV248300ULM3

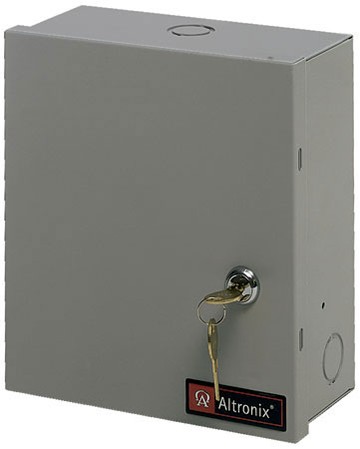

Altronix ALTV248300ULM3 Proprietary Power Supply - Wall Mount - 110 V AC Input - 280 W, 300 W
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Specifications
ico-plus ico-minus
Technical Information
Protection Type Surge
Power Description
Input Voltage Type AC
Input Voltage 110 V AC
Output Voltage
  • 24 V AC
  • 28 V AC
Output Voltage Detail
  • 24 V AC @ 12.5 A
  • 28 V AC @ 10 A
Input Current 2.7 A @ 110V
Output Current
  • 12.50 A
  • 10 A
Output Power
  • 280 W
  • 300 W
Controls/Indicators
Status Indicators AC Power LED
Interfaces/Ports
Plug/Connector On/Off Switch
Physical Characteristics
Form Factor Wall Mount
Height 8.5"
Width 7.5"
Depth 3.5"
Weight (Approximate) 10.85 lb
Miscellaneous
Certifications & Standards
  • UL (UL2044)
  • CUL (CSA Standard C22.2 No.1-98)
  • CE
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
