Altronix

Accessories Altronix ALTV244175

UGS :

ALTV244175

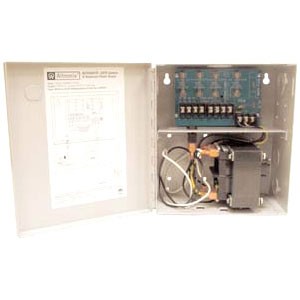

Altronix ALTV244175 Proprietary Power Supply - Wall Mount - 110 V AC Input
ico-puzzle-piece-02 Ce produit est compatible avec...
Description
ico-plus ico-minus
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Specifications
ico-plus ico-minus
Technical Information
Protection Type Surge
Power Description
Input Voltage Type AC
Input Voltage 110 V AC
Output Voltage
  • 24 V AC
  • 28 V AC
Output Voltage Detail
  • 24 V AC @ 7.25 A
  • 28 V AC @ 6.25 A
Input Current 1.5 A @ 110V
Output Current
  • 7.25 A
  • 6.25 A
Physical Characteristics
Form Factor Wall Mount
Height 8.5"
Width 7.5"
Depth 3.5"
Weight (Approximate) 9.90 lb
Miscellaneous
Compatibility
  • Heaters
  • CCTV Cameras
  • Video Accessories
NDAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
