Accessories ACTi A817
UGS :
A817

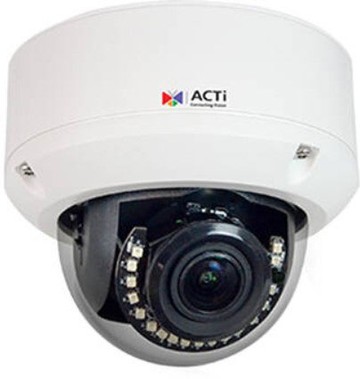

8MP Video Analytics Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom lens, f2.8-12 mm/F1.3, Auto Focus (for installation), H.265/H.264, 4K/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10, DI/DO, Built-in Analytics
Description
Products and parts from ACTi.
Technical Specifications
| Technical Information | |
|---|---|
| Recording Formats | HD |
| HD Recording | Yes |
| Night Vision Distance | 98.43 ft |
| Display & Graphics | |
|---|---|
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
|---|---|
| Video Formats |
|
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
|---|---|
| Lens Type | Varifocal |
| Minimum Focal Length | 2.80 mm |
| Maximum Focal Length | 12 mm |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.3 |
| Optical Zoom | 4.3x |
| Network & Communication | |
|---|---|
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45) | Yes |
| Power Description | |
|---|---|
| Input Voltage | 12 V DC |
| Physical Characteristics | |
|---|---|
| Mount Type |
|
| Form Factor | Dome |
| Height | 5.1" |
| Diameter | 5.5" |
| Weight (Approximate) | 2.71 lb |
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
|---|---|
| Features |
|
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
